ASP.NET(vb.net) & DataGrid - Visual Studio .NET 2003 (Fx 1.1)

Author: admin | Posted: 06-06-2010 | Category: ASP.NET(vb.net) & DataGrid Control

ASP.NET(vb.net) & DataGrid - Visual Studio .NET 2003 (Fx 1.1) Example scripts how to Explains DataGrid control in asp.net , Development example scripts on Visual Studio .NET 2003 (FX 1.1).

ShotDev Focus:
- ASP.NET(vb.net) & DataGrid - Visual Studio .NET 2003 (Fx 1.1)

Example

DataGrid1.aspx


<%@ Page Language="vb" AutoEventWireup="false" Codebehind="DataGrid1.aspx.vb" Inherits="MyDotNet.DataGrid1"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<html>
<head>
<title>ShotDev.Com Tutorial</title>
<meta name="GENERATOR" content="Microsoft Visual Studio .NET 7.1">
<meta name="CODE_LANGUAGE" content="Visual Basic .NET 7.1">
<meta name=vs_defaultClientScript content="JavaScript">
<meta name=vs_targetSchema content="http://schemas.microsoft.com/intellisense/ie5">
</head>
<body MS_POSITIONING="GridLayout">
<form id="Form1" method="post" runat="server">
<asp:DataGrid id="myDataGrid" runat="server" AutoGenerateColumns="False"
ShowFooter="True"
DataKeyField="CustomerID">

<Columns>

<asp:TemplateColumn HeaderText="CustomerID">
<ItemTemplate>
<asp:Label id="lblCustomerID" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.CustomerID") %>'></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox id="txtEditCustomerID" size="5" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.CustomerID") %>'></asp:TextBox>
</EditItemTemplate>
<FooterTemplate>
<asp:TextBox id="txtAddCustomerID" size="5" runat="server"></asp:TextBox>
</FooterTemplate>
</asp:TemplateColumn>

<asp:TemplateColumn HeaderText="Name">
<ItemTemplate>
<asp:Label id="lblName" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Name") %>'></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox id="txtEditName" size="10" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Name") %>'></asp:TextBox>
</EditItemTemplate>
<FooterTemplate>
<asp:TextBox id="txtAddName" size="10" runat="server"></asp:TextBox>
</FooterTemplate>
</asp:TemplateColumn>

<asp:TemplateColumn HeaderText="Email">
<ItemTemplate>
<asp:Label id="lblEmail" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Email") %>'></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox id="txtEditEmail" size="20" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Email") %>'></asp:TextBox>
</EditItemTemplate>
<FooterTemplate>
<asp:TextBox id="txtAddEmail" size="20" runat="server"></asp:TextBox>
</FooterTemplate>
</asp:TemplateColumn>

<asp:TemplateColumn HeaderText="CountryCode">
<ItemTemplate>
<asp:Label id="lblCountryCode" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.CountryCode") %>'></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox id="txtEditCountryCode" size="2" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.CountryCode") %>'></asp:TextBox>
</EditItemTemplate>
<FooterTemplate>
<asp:TextBox id="txtAddCountryCode" size="2" runat="server"></asp:TextBox>
</FooterTemplate>
</asp:TemplateColumn>

<asp:TemplateColumn HeaderText="Budget">
<ItemTemplate>
<asp:Label id="lblBudget" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Budget") %>'></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox id="txtEditBudget" size="6" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Budget") %>'></asp:TextBox>
</EditItemTemplate>
<FooterTemplate>
<asp:TextBox id="txtAddBudget" size="6" runat="server"></asp:TextBox>
</FooterTemplate>
</asp:TemplateColumn>

<asp:TemplateColumn HeaderText="Used">
<ItemTemplate>
<asp:Label id="lblUsed" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Used") %>'></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<asp:TextBox id="txtEditUsed" size="6" runat="server" Text='<%# DataBinder.Eval(Container, "DataItem.Used") %>'></asp:TextBox>
</EditItemTemplate>
<FooterTemplate>
<asp:TextBox id="txtAddUsed" size="6" runat="server"></asp:TextBox>
<asp:Button id="btnAdd" runat="server" Text="Add" CommandName="Add"></asp:Button>
</FooterTemplate>
</asp:TemplateColumn>

<asp:EditCommandColumn ButtonType="LinkButton" UpdateText="Update" CancelText="Cancel" EditText="Edit" HeaderText="Modify" ></asp:EditCommandColumn>
<asp:ButtonColumn Text="Delete" CommandName="Delete" HeaderText="Delete"></asp:ButtonColumn>

</Columns>
</asp:DataGrid>
</form>
</body>
</html>

DataGrid1.aspx.vb


Imports System.Data
Imports System.Data.OleDb
Public Class DataGrid1
Inherits System.Web.UI.Page

#Region " Web Form Designer Generated Code "

<System.Diagnostics.DebuggerStepThrough()> Private Sub InitializeComponent()

End Sub
Protected WithEvents myDataGrid As DataGrid

Private designerPlaceholderDeclaration As System.Object

Private Sub Page_Init(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Init
InitializeComponent()
End Sub

#End Region

Dim objConn As OleDbConnection
Dim objCmd As OleDbCommand
Dim strSQL As String

Private Sub Page_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Dim strConnString As String
strConnString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" & Server.MapPath("database/mydatabase.mdb") & ";"
objConn = New OleDbConnection(strConnString)
objConn.Open()

If Not Page.IsPostBack() Then
BindData()
End If
End Sub

Private Sub BindData()
strSQL = "SELECT * FROM customer"

Dim dtReader As OleDbDataReader
objCmd = New OleDbCommand(strSQL, objConn)
dtReader = objCmd.ExecuteReader()

'*** BindData to DataGrid ***'
myDataGrid.DataSource = dtReader
myDataGrid.DataBind()

dtReader.Close()
dtReader = Nothing

End Sub

Private Sub Page_Unload(ByVal sender As Object, ByVal e As System.EventArgs) Handles MyBase.Unload
objConn.Close()
objConn = Nothing
End Sub

Private Sub myDataGrid_EditCommand(ByVal source As Object, ByVal e As DataGridCommandEventArgs) Handles myDataGrid.EditCommand
myDataGrid.EditItemIndex = e.Item.ItemIndex
myDataGrid.ShowFooter = False
BindData()
End Sub

Private Sub myDataGrid_CancelCommand(ByVal source As Object, ByVal e As DataGridCommandEventArgs) Handles myDataGrid.CancelCommand
myDataGrid.EditItemIndex = -1
myDataGrid.ShowFooter = True
BindData()
End Sub

Private Sub myDataGrid_ItemCommand(ByVal source As Object, ByVal e As DataGridCommandEventArgs) Handles myDataGrid.ItemCommand
If e.CommandName = "Add" Then
'*** CustomerID ***'
Dim txtCustomerID As TextBox = CType(e.Item.FindControl("txtAddCustomerID"), TextBox)
'*** Name ***'
Dim txtName As TextBox = CType(e.Item.FindControl("txtAddName"), TextBox)
'*** Email ***'
Dim txtEmail As TextBox = CType(e.Item.FindControl("txtAddEmail"), TextBox)
'*** CountryCode ***'
Dim txtCountryCode As TextBox = CType(e.Item.FindControl("txtAddCountryCode"), TextBox)
'*** Budget ***'
Dim txtBudget As TextBox = CType(e.Item.FindControl("txtAddBudget"), TextBox)
'*** Used ***'
Dim txtUsed As TextBox = CType(e.Item.FindControl("txtAddUsed"), TextBox)

strSQL = "INSERT INTO customer (CustomerID,Name,Email,CountryCode,Budget,Used) " & _
" VALUES ('" & txtCustomerID.Text & "','" & txtName.Text & "','" & txtEmail.Text & "' " & _
" ,'" & txtCountryCode.Text & "','" & txtBudget.Text & "','" & txtUsed.Text & "') "
objCmd = New OleDbCommand(strSQL, objConn)
objCmd.ExecuteNonQuery()

BindData()
End If
End Sub

Private Sub myDataGrid_DeleteCommand(ByVal source As Object, ByVal e As DataGridCommandEventArgs) Handles myDataGrid.DeleteCommand
strSQL = "DELETE FROM customer WHERE CustomerID = '" & myDataGrid.DataKeys.Item(e.Item.ItemIndex) & "'"
objCmd = New OleDbCommand(strSQL, objConn)
objCmd.ExecuteNonQuery()

myDataGrid.EditItemIndex = -1
BindData()
End Sub

Private Sub myDataGrid_UpdateCommand(ByVal source As Object, ByVal e As DataGridCommandEventArgs) Handles myDataGrid.UpdateCommand
'*** CustomerID ***'
Dim txtCustomerID As TextBox = CType(e.Item.FindControl("txtEditCustomerID"), TextBox)
'*** Name ***'
Dim txtName As TextBox = CType(e.Item.FindControl("txtEditName"), TextBox)
'*** Email ***'
Dim txtEmail As TextBox = CType(e.Item.FindControl("txtEditEmail"), TextBox)
'*** CountryCode ***'
Dim txtCountryCode As TextBox = CType(e.Item.FindControl("txtEditCountryCode"), TextBox)
'*** Budget ***'
Dim txtBudget As TextBox = CType(e.Item.FindControl("txtEditBudget"), TextBox)
'*** Used ***'
Dim txtUsed As TextBox = CType(e.Item.FindControl("txtEditUsed"), TextBox)

strSQL = "UPDATE customer SET CustomerID = '" & txtCustomerID.Text & "' " & _
" ,Name = '" & txtName.Text & "' " & _
" ,Email = '" & txtEmail.Text & "' " & _
" ,CountryCode = '" & txtCountryCode.Text & "' " & _
" ,Budget = '" & txtBudget.Text & "' " & _
" ,Used = '" & txtUsed.Text & "' " & _
" WHERE CustomerID = '" & myDataGrid.DataKeys.Item(e.Item.ItemIndex) & "'"
objCmd = New OleDbCommand(strSQL, objConn)
objCmd.ExecuteNonQuery()

myDataGrid.EditItemIndex = -1
myDataGrid.ShowFooter = True
BindData()
End Sub
End Class

Create a asp.net file and save to path root-path/dotnet/

Run
http://localhost/dotnet/DataGrid1.aspx

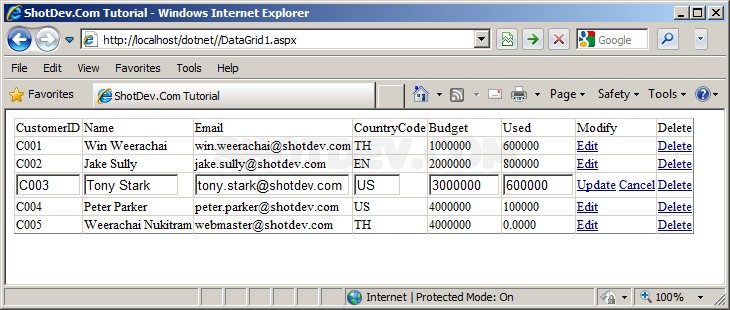

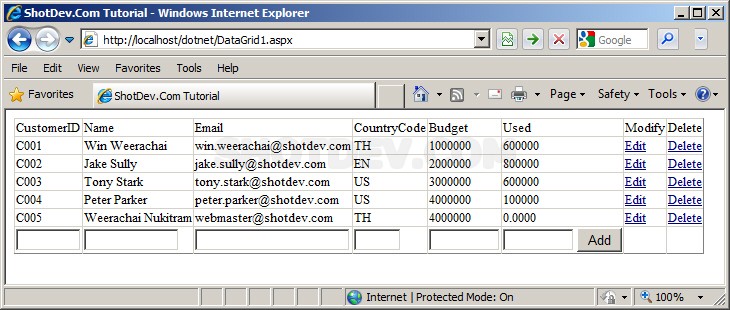

Screenshot
